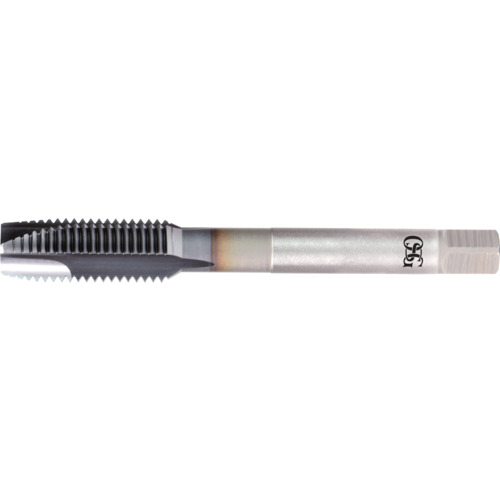

1-20 H5 3FL SP PT PLUG ATAP TICN
Spiral Point Tap; 1″ - 20 ; 5.51″ OAL ; 3 FL ; HSS-PM ; Vanadium ; H5 ; Series 16515
| Thread Standard | UNEF | Cutting Edge Material | HSS-PM |
| Thread Size | 1″ - 20 | Tool Type | Spiral Point Tap |
| Thread Diameter Size (TDZ) | 1″ | Applicable Material | | Steel | Aluminum / Non-Ferrous Materials | |
| Threads per Inch (TPI) | 20 | Connection Diameter Machine Side (DCONMS) | 0.8″ |
| Thread Tolerance Class (TCTR) | H5 | Thread Cutting Part Length (THL) | 1-1/2″ |
| Usable Length (LU) | 2.09″ | End Shape | Spiral Point |
| Overall Length (OAL) | 5.51″ | Style | Plug |
| Chamfer | 3.5P-4.5P | Cutting Direction (HAND) | Right Hand |
| Coating | Vanadium | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Series/List # | 16515 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
5.60000
Package Width
1.30000
Package Height
1.20000
Package Weight
0.795
