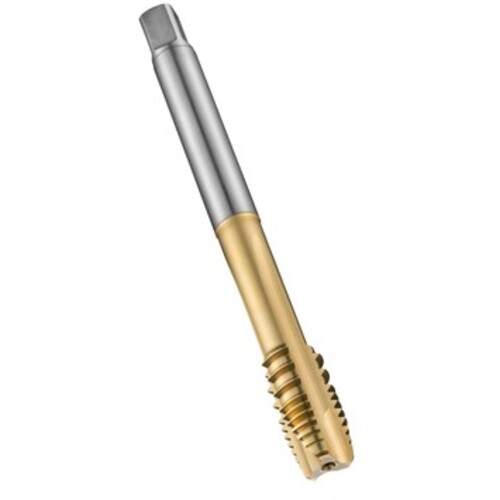

M14x2.0 Flute 6H HSS-E M Machine Tap - Interrupted Threads Spiral Point E-code # E423M14
Spiral Point Tap; M14 × 2 mm ; HSSE ; TiN ; 6H ; Series E423
Additional Tariff Surcharge of 8 %
| Thread Standard | M | Connection Diameter Machine Side (DCONMS) | 11 mm |
| Thread Size | M14 × 2 | Tapping Prehole Diameter (Pre-hole) | 15/32″ |
| Thread Diameter Size (TDZ) | M14 | End Shape | Spiral Point |
| Thread Pitch (TP) | 2 mm | Style | Plug |
| Thread Tolerance Class (TCTR) | 6H | Cutting Direction (HAND) | Right Hand |
| Chamfer | 3.5P-5P | Coolant Supply Property (CSP) | External |
| Coating | TiN | Length Group | 3xD |
| Cutting Edge Material | HSSE | Measurement Type | Metric |
| Standard | DIN 376 | Series/List # | E423 |
| Tool Type | Machine Tap |
Product Features
| Family Description | E-code # E423M14 | Country of Origin | India |
Shipping Info
Package Weight
0.185
