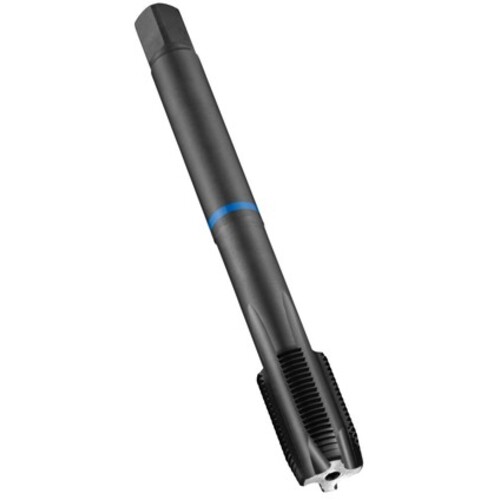

M6x0.75 3 Flute 6H HSS-E PM MF Machine Tap Spiral Point - Blue Shark E-code # E384M6X.75
Spiral Point Tap; M6 × 0.75 mm ; 80 mm OAL ; 3 FL ; HSSE-PM ; Black Oxide ; 6H ; Series E384
Additional Tariff Surcharge of 8 %
| Thread Standard | MF | Special Feature | Blue Shark |
| Thread Size | M6 × 0.75 | Applicable Material | | Stainless Steel | |
| Thread Diameter Size (TDZ) | M6 | Connection Diameter Machine Side (DCONMS) | 4.5 mm |
| Thread Pitch (TP) | 0.75 mm | Thread Cutting Part Length (THL) | 15 mm |
| Thread Tolerance Class (TCTR) | 6H | Flute Length | 15 mm |
| Overall Length (OAL) | 80 mm | End Shape | Spiral Point |
| Chamfer | 3.5P-5P | Style | Plug |
| Coating | Black Oxide | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | HSSE-PM | Length Group | 2.5xD |
| Standard | DIN 374 | Measurement Type | Metric |
| Tool Type | Machine Tap | Series/List # | E384 |
Product Features
| Family Description | E-code # E384M6X.75 | Country of Origin | India |
Shipping Info
Package Weight
1.106
