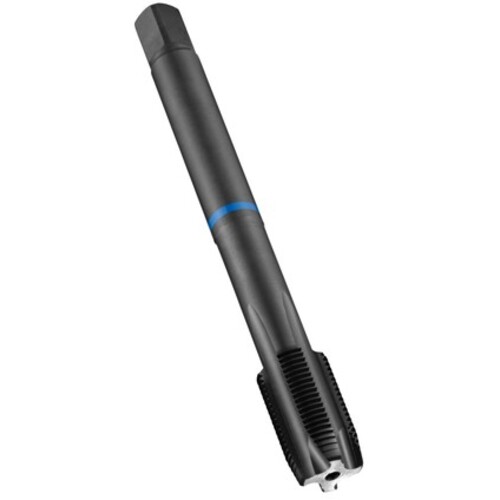

M12x1.5 4 Flute 6H HSS-E PM MF Machine Tap Spiral Point - Blue Shark E-code # E384M12X1.5
Spiral Point Tap; M12 × 1.5 mm ; 100 mm OAL ; 4 FL ; HSSE-PM ; Black Oxide ; 6H ; Series E384
Additional Tariff Surcharge of 8 %
| Thread Standard | MF | Applicable Material | | Stainless Steel | |
| Thread Size | M12 × 1.5 | Connection Diameter Machine Side (DCONMS) | 9 mm |
| Thread Diameter Size (TDZ) | M12 | Thread Cutting Part Length (THL) | 21 mm |
| Thread Pitch (TP) | 1.5 mm | Tapping Prehole Diameter (Pre-hole) | Z |
| Thread Tolerance Class (TCTR) | 6H | Flute Length | 21 mm |
| Overall Length (OAL) | 100 mm | End Shape | Spiral Point |
| Chamfer | 3.5P-5P | Style | Plug |
| Coating | Black Oxide | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | HSSE-PM | Length Group | 2.5xD |
| Standard | DIN 374 | Measurement Type | Metric |
| Tool Type | Machine Tap | Series/List # | E384 |
| Special Feature | Blue Shark |
Product Features
| Family Description | E-code # E384M12X1.5 | Country of Origin | India |
Shipping Info
Package Weight
1.488
