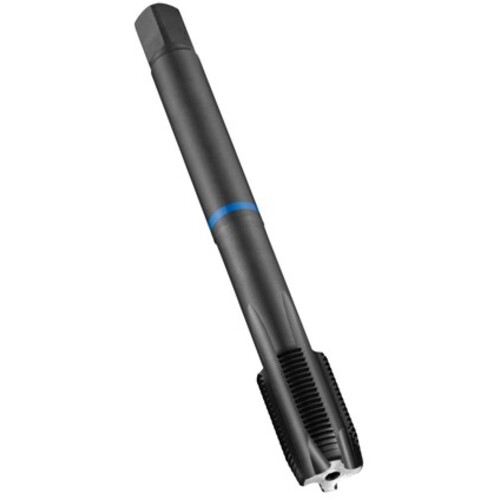

M10x1.25 3 Flute 6H HSS-E PM MF Machine Tap Spiral Point - Blue Shark E-code # E384M10X1.25
Spiral Point Tap; M10 × 1.25 mm ; 100 mm OAL ; 3 FL ; HSSE-PM ; Black Oxide ; 6H ; Series E384
Additional Tariff Surcharge of 8 %
| Thread Standard | MF | Applicable Material | | Stainless Steel | |
| Thread Size | M10 × 1.25 | Connection Diameter Machine Side (DCONMS) | 7 mm |
| Thread Diameter Size (TDZ) | M10 | Thread Cutting Part Length (THL) | 2 mm |
| Thread Pitch (TP) | 1.25 mm | Tapping Prehole Diameter (Pre-hole) | 11/32″ |
| Thread Tolerance Class (TCTR) | 6H | Flute Length | 20 mm |
| Overall Length (OAL) | 100 mm | End Shape | Spiral Point |
| Chamfer | 3.5P-5P | Style | Plug |
| Coating | Black Oxide | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | HSSE-PM | Length Group | 2.5xD |
| Standard | DIN 374 | Measurement Type | Metric |
| Tool Type | Machine Tap | Series/List # | E384 |
| Special Feature | Blue Shark |
Product Features
| Family Description | E-code # E384M10X1.25 | Country of Origin | India |
Shipping Info
Package Weight
1.665
