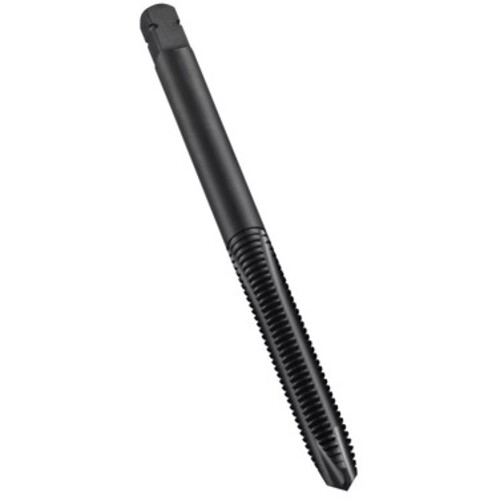

1/2-13 3 Flute 2B HSS-E UNC Machine Tap Spiral Point E-code # E0211/2
Spiral Point Tap; 1/2″ - 13 ; 3 FL ; HSSE ; Black Oxide ; 2B ; Series E021
Additional Tariff Surcharge of 8 %
| Thread Standard | UNC | Tool Type | Machine Tap |
| Thread Size | 1/2″ - 13 | Connection Diameter Machine Side (DCONMS) | 9 mm |
| Thread Diameter Size (TDZ) | 1/2″ | Tapping Prehole Diameter (Pre-hole) | 27/64″ |
| Threads per Inch (TPI) | 13 | End Shape | Spiral Point |
| Thread Tolerance Class (TCTR) | 2B | Style | Plug |
| Chamfer | 3.5P-5P | Cutting Direction (HAND) | Right Hand |
| Coating | Black Oxide | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 | Length Group | 2.5xD |
| Cutting Edge Material | HSSE | Measurement Type | Inch |
| Standard | ISO 529 | Series/List # | E021 |
Product Features
| Family Description | E-code # E0211/2 | Country of Origin | India |
Shipping Info
Package Weight
1.294
