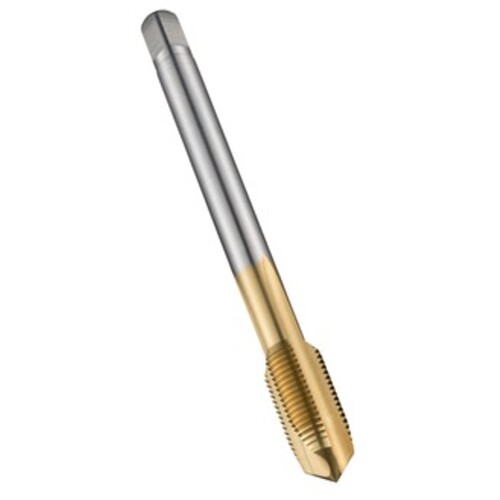

M14x1.5 3 Flute 6H HSS-E MF Machine Tap Spiral Point E-code # EP10TINM14X1.5
Spiral Point Tap; M14 × 1.5 mm ; 3 FL ; HSSE ; TiN ; 6H ; Series EP10TIN
Additional Tariff Surcharge of 8 %
| Thread Standard | MF | Tool Type | Machine Tap |
| Thread Size | M14 × 1.5 | Connection Diameter Machine Side (DCONMS) | 11 mm |
| Thread Diameter Size (TDZ) | M14 | Tapping Prehole Diameter (Pre-hole) | 31/64″ |
| Thread Pitch (TP) | 1.5 mm | End Shape | Spiral Point |
| Thread Tolerance Class (TCTR) | 6H | Style | Plug |
| Chamfer | 3.5P-5P | Cutting Direction (HAND) | Right Hand |
| Coating | TiN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 | Length Group | 2.5xD |
| Cutting Edge Material | HSSE | Measurement Type | Metric |
| Standard | DIN 374 | Series/List # | EP10TIN |
Product Features
| Family Description | E-code # EP10TINM14X1.5 | Country of Origin | India |
Shipping Info
Package Weight
0.245
