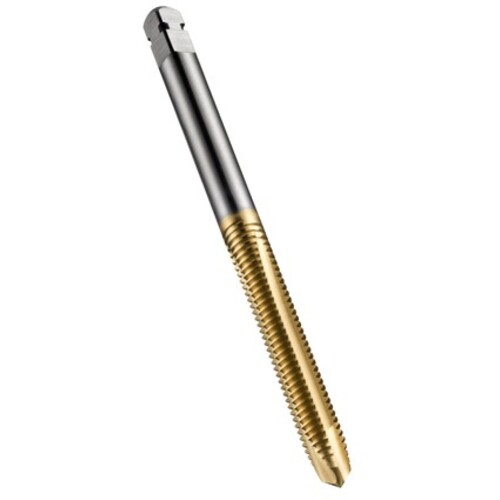

M12x1.75 3 Flute 6H HSS-E M Machine Tap Spiral Point E-code # E000TINM12
Spiral Point Tap; M12 × 1.75 mm ; 3 FL ; HSSE ; TiN ; 6H ; Series E000TIN
Additional Tariff Surcharge of 8 %
| Thread Standard | M | Tool Type | Machine Tap |
| Thread Size | M12 × 1.75 | Connection Diameter Machine Side (DCONMS) | 9 mm |
| Thread Diameter Size (TDZ) | M12 | Tapping Prehole Diameter (Pre-hole) | Y |
| Thread Pitch (TP) | 1.75 mm | End Shape | Spiral Point |
| Thread Tolerance Class (TCTR) | 6H | Style | Plug |
| Chamfer | 3.5P-5P | Cutting Direction (HAND) | Right Hand |
| Coating | TiN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 | Length Group | 2.5xD |
| Cutting Edge Material | HSSE | Measurement Type | Metric |
| Standard | ISO 529 | Series/List # | E000TIN |
Product Features
| Family Description | E-code # E000TINM12 | Country of Origin | India |
Shipping Info
Package Weight
1.149
