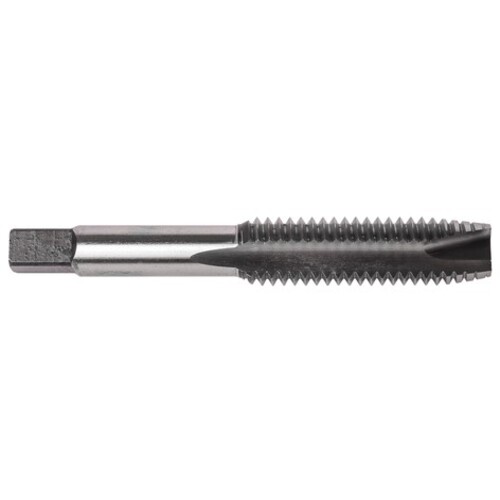

5/16″- 18 3 Flute Plug Union Butterfield HSS TiN UNC Relieved Style Spiral Point ANSI E-code # TN15855/16-18H33FL
Spiral Point Tap; 5/16″ - 18 ; 2-23/32″ OAL ; 3 FL ; HSS ; TiN ; 2B|3B|H3

| Thread Standard | NC | Applicable Material | | Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Thread Size | 5/16″ - 18 | Connection Diameter Machine Side (DCONMS) | 0.238″ |
| Thread Diameter Size (TDZ) | 5/16″ | Thread Cutting Part Length (THL) | 1-1/8″ |
| Threads per Inch (TPI) | 18 | End Shape | Spiral Point |
| Thread Tolerance Class (TCTR) | 2B|3B|H3 | Style | Plug |
| Overall Length (OAL) | 2-23/32″ | Cutting Direction (HAND) | Right Hand |
| Coating | TiN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 | Length Group | 2.5xD |
| Cutting Edge Material | HSS | Square Size | 3/8″ |
| Standard | ANSI | Measurement Type | Inch |
Product Features
| Family Description | E-code # TN15855/16-18H33FL | Country of Origin | USA |
Shipping Info
Package Weight
0.055
