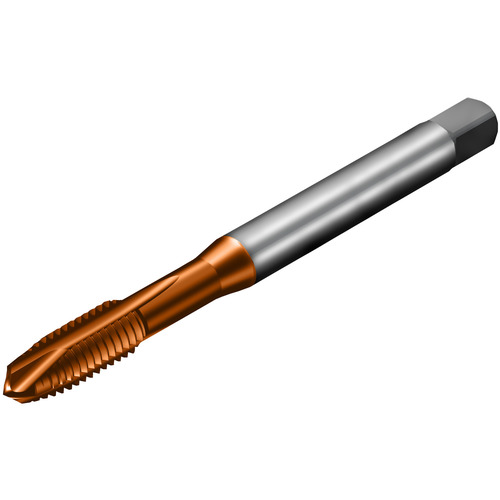

T200-XM100DE-1/4 C110 COROTAP 200
Spiral Point Tap; 1/4″ - 20 ; 82.9 mm OAL ; 3 FL ; HSS-PM ; AlCrN ; 2B
Additional Tariff Surcharge of 8 %
| Thread Standard | NC | Standard | DIN2184 |
| Thread Size | 1/4″ - 20 | Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Thread Diameter Size (TDZ) | 1/4″ | Connection Diameter Machine Side (DCONMS) | 7 mm |
| Threads per Inch (TPI) | 20 | Thread Cutting Part Length (THL) | 14.1 mm |
| Thread Tolerance Class (TCTR) | 2B | Flute Type | Straight |
| Usable Length (LU) | 30 mm | End Shape | Spiral Point |
| Overall Length (OAL) | 82.9 mm | Cutting Direction (HAND) | Right Hand |
| Coating | AlCrN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Cutting Edge Material | HSS-PM |
Product Features
| Country of Origin | India |
Shipping Info
Package Weight
0.053
