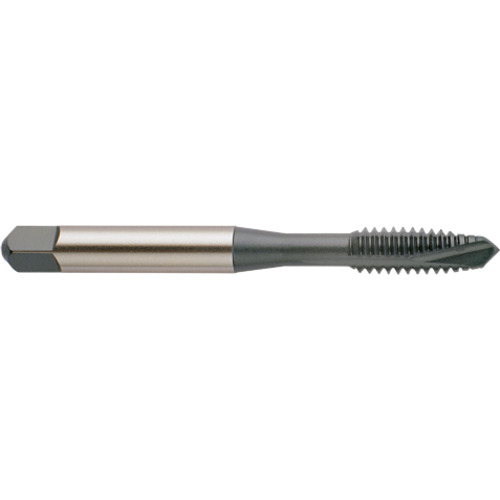

Spiral Point Tap; 1/4″ - 20 ; 2-1/2″ OAL ; 3 FL ; HSSE-V3 ; Steam Oxide ; H3 ; Series I0
Spiral Point Tap; 1/4″ - 20 ; 2-1/2″ OAL ; 3 FL ; HSSE-V3 ; Black Oxide ; H3 ; Series I0
| Thread Standard | UNC | Standard | 302A |
| Thread Size | 1/4″ - 20 | Tool Type | Spiral Point Tap |
| Thread Diameter Size (TDZ) | 1/4″ | Connection Diameter Machine Side (DCONMS) | 0.255″ |
| Threads per Inch (TPI) | 20 | Thread Cutting Part Length (THL) | 0.591″ |
| Thread Tolerance Class (TCTR) | H3 | Tapping Prehole Diameter (Pre-hole) | 0.2045″ |
| Usable Length (LU) | 1″ | End Shape | Plug |
| Overall Length (OAL) | 2-1/2″ | Shank Type | Square |
| Chamfer | 4P-5P | Length Group | 3xD |
| Coating | Black Oxide | Square Size | 0.191″ |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Cutting Edge Material | HSSE-V3 | Series/List # | I0 |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
3.125
Package Width
0.5
Package Height
0.375
Package Weight
0.02
