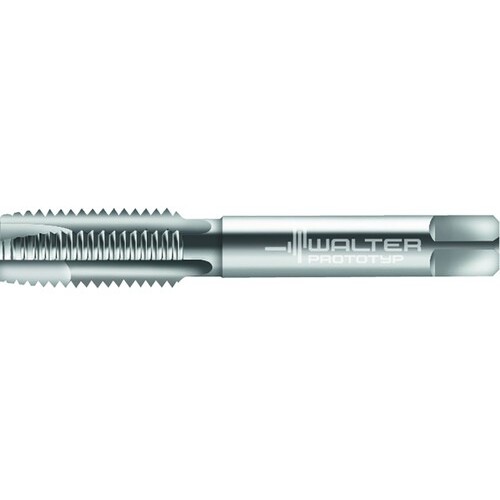

PG13.5-18 4 Flute HSS Spiral Point Tap
Spiral Point Tap; PG13.5 - 18 ; 80 mm OAL ; 4 FL ; HSS ; Uncoated

Additional Tariff Surcharge of 8 %
| Thread Standard | PG | Connection Diameter Machine Side (DCONMS) | 16 mm |
| Thread Size | PG13.5 - 18 | Thread Cutting Part Length (THL) | 22 mm |
| Thread Diameter Size (TDZ) | PG13.5 | Flute Helix Angle (FHA) | CW|15 Degrees |
| Threads per Inch (TPI) | 18 | Flute Length | 41.5 mm |
| Overall Length (OAL) | 80 mm | Flute Type | Straight |
| Coating | Uncoated | End Shape | Spiral Point |
| Flute Count (NOF) | 4 | Cutting Direction (HAND) | Right Hand |
| Cutting Edge Material | HSS | Coolant Supply Property (CSP) | External |
| Standard | DIN 40 432 | Measurement Type | Wire Gauge |
Product Features
| Family Description | 27160-PG13.5 | Country of Origin | India |
Shipping Info
Package Length
3.50000
Package Width
1.06800
Package Height
1.06800
Package Weight
0.288
