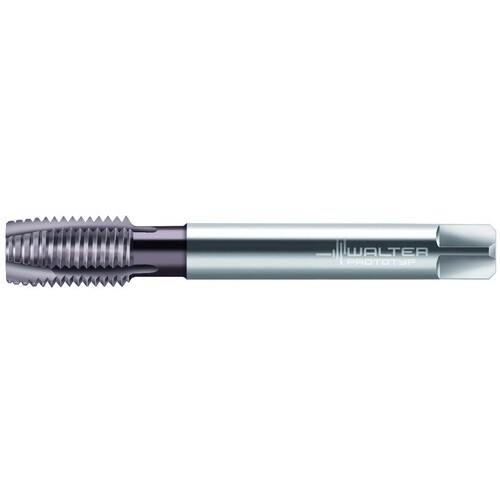

M20x2.5 4 Flute HSS THL Left Hand Spiral Point Tap
Spiral Point Tap; M20 × 2.5 mm ; 140 mm OAL ; 4 FL ; HSS ; 6HX
Additional Tariff Surcharge of 8 %
| Thread Standard | Metric | Connection Diameter Machine Side (DCONMS) | 16 mm |
| Thread Size | M20 × 2.5 | Thread Cutting Part Length (THL) | 30 mm |
| Thread Diameter Size (TDZ) | M20 | Flute Helix Angle (FHA) | CW|10 Degrees |
| Thread Pitch (TP) | 2.5 mm | Flute Length | 60 mm |
| Thread Tolerance Class (TCTR) | 6HX | Flute Type | Straight |
| Overall Length (OAL) | 140 mm | End Shape | Spiral Point |
| Flute Count (NOF) | 4 | Cutting Direction (HAND) | Left Hand |
| Cutting Edge Material | HSS | Coolant Supply Property (CSP) | External |
| Standard | DIN 376 | Measurement Type | Metric |
Product Features
| Family Description | EP2026382-M20 | Country of Origin | Germany |
Shipping Info
Package Weight
0.485
