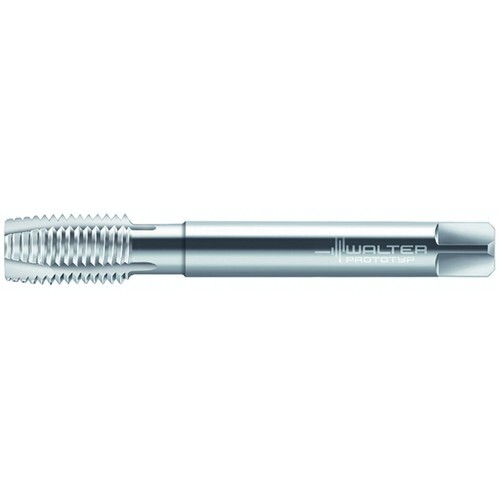

M16x2 6H 3 Flute HSS Bright Left Hand Spiral Point
Spiral Point Tap; M16 × 2 mm ; 110 mm OAL ; 3 FL ; HSS ; Uncoated ; 6H
Additional Tariff Surcharge of 8 %
| Thread Standard | Metric | Connection Diameter Machine Side (DCONMS) | 12 mm |
| Thread Size | M16 × 2 | Thread Cutting Part Length (THL) | 25 mm |
| Thread Diameter Size (TDZ) | M16 | Flute Helix Angle (FHA) | CW|45 Degrees |
| Thread Pitch (TP) | 2 mm | Flute Length | 48 mm |
| Thread Tolerance Class (TCTR) | 6H | Flute Type | Straight |
| Overall Length (OAL) | 110 mm | End Shape | Spiral Point |
| Coating | Uncoated | Cutting Direction (HAND) | Left Hand |
| Flute Count (NOF) | 3 | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | HSS | Measurement Type | Metric |
| Standard | DIN 376 |
Product Features
| Family Description | P202608-M16 | Country of Origin | Germany |
Shipping Info
Package Length
4.75000
Package Width
1.00000
Package Height
1.00000
Package Weight
0.214
