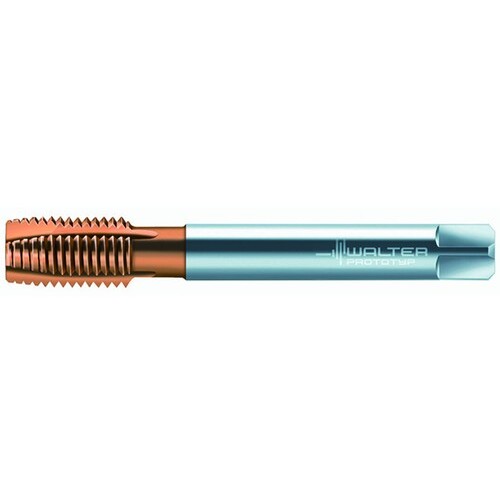

M12x1.75 6HX 4 Flute HSS TiN Spiral Point Tap
Spiral Point Tap; M12 × 1.75 mm ; 111.92 mm OAL ; 4 FL ; HSS ; TiN ; 6HX
Additional Tariff Surcharge of 8 %
| Thread Standard | Metric | Connection Diameter Machine Side (DCONMS) | 9 mm |
| Thread Size | M12 × 1.75 | Thread Cutting Part Length (THL) | 23 mm |
| Thread Diameter Size (TDZ) | M12 | Flute Helix Angle (FHA) | CW|15 Degrees |
| Thread Pitch (TP) | 1.75 mm | Flute Length | 37 mm |
| Thread Tolerance Class (TCTR) | 6HX | Flute Type | Straight |
| Overall Length (OAL) | 111.92 mm | End Shape | Spiral Point |
| Coating | TiN | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | HSS | Measurement Type | Metric |
| Standard | DIN 376 |
Product Features
| Family Description | M2026305-M12 | Country of Origin | India |
