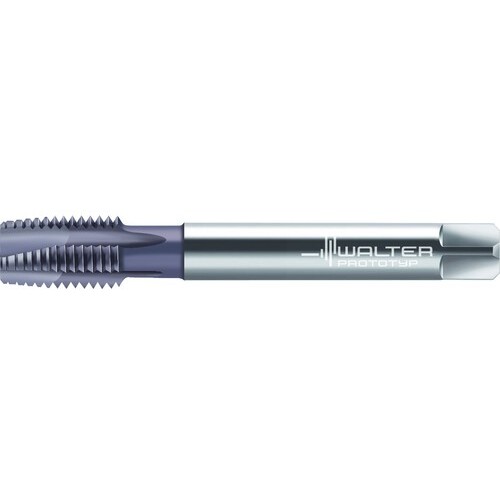

7/8-9 UNC 3B 4 Flute HSS TiCN Spiral Point Tap
Spiral Point Tap; 7/8″ - 9 ; 4-11/16″ OAL ; 4 FL ; HSS ; TiCN ; 3B
Additional Tariff Surcharge of 8 %
| Thread Standard | NC | Connection Diameter Machine Side (DCONMS) | 0.697″ |
| Thread Size | 7/8″ - 9 | Thread Cutting Part Length (THL) | 1-17/64″ |
| Thread Diameter Size (TDZ) | 7/8″ | Flute Helix Angle (FHA) | CW|30 Degrees |
| Threads per Inch (TPI) | 9 | Flute Length | 1-11/16″ |
| Thread Tolerance Class (TCTR) | 3B | Flute Type | Straight |
| Overall Length (OAL) | 4-11/16″ | End Shape | Spiral Point |
| Coating | TiCN | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | HSS | Measurement Type | Inch |
| Standard | ANSI B94.9 |
Product Features
| Family Description | A2225766-UNC7/8 | Country of Origin | Germany |
Shipping Info
Package Weight
0.493
