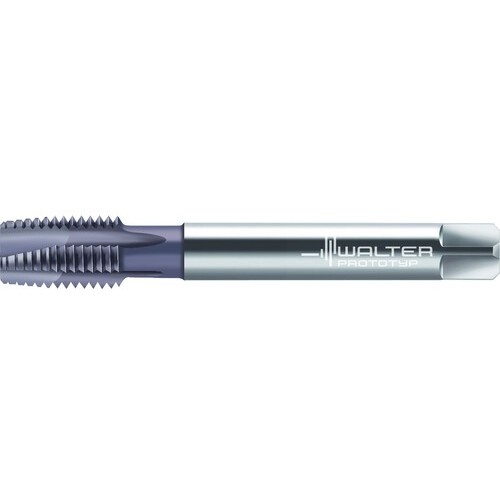

1″-8 UNC 3B 4 Flute HSS TiCN Spiral Point Tap
Spiral Point Tap; 1″ - 8 ; 5-1/8″ OAL ; 4 FL ; HSS ; TiCN ; 3B

Additional Tariff Surcharge of 8 %
| Thread Standard | NC | Connection Diameter Machine Side (DCONMS) | 0.8″ |
| Thread Size | 1″ - 8 | Thread Cutting Part Length (THL) | 1-29/64″ |
| Thread Diameter Size (TDZ) | 1″ | Flute Helix Angle (FHA) | CW|45 Degrees |
| Threads per Inch (TPI) | 8 | Flute Length | 2-13/64″ |
| Thread Tolerance Class (TCTR) | 3B | Flute Type | Straight |
| Overall Length (OAL) | 5-1/8″ | End Shape | Spiral Point |
| Coating | TiCN | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | HSS | Measurement Type | Inch |
| Standard | ANSI B94.9 |
Product Features
| Family Description | A2225766-UNC1 | Country of Origin | Germany |
Shipping Info
Package Weight
0.696
