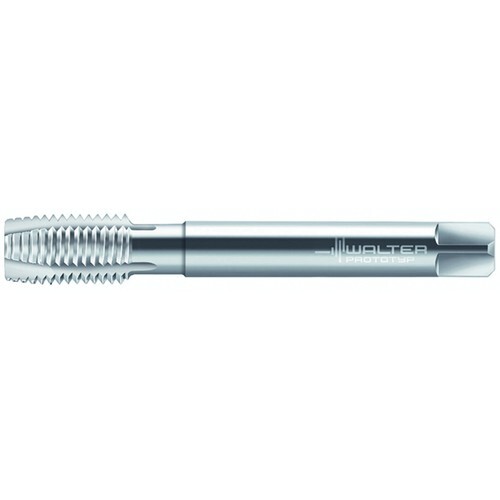

M10x1 6H 3 Flute HSS Bright Left Hand Spiral Point
Spiral Point Tap; M10 × 1 mm ; 94.52 mm OAL ; 3 FL ; HSS ; Uncoated ; 6H
Additional Tariff Surcharge of 8 %
| Thread Standard | Metric | Connection Diameter Machine Side (DCONMS) | 7 mm |
| Thread Size | M10 × 1 | Thread Cutting Part Length (THL) | 20 mm |
| Thread Diameter Size (TDZ) | M10 | Flute Helix Angle (FHA) | CW|45 Degrees |
| Thread Pitch (TP) | 1 mm | Flute Length | 37 mm |
| Thread Tolerance Class (TCTR) | 6H | Flute Type | Straight |
| Overall Length (OAL) | 94.52 mm | End Shape | Spiral Point |
| Coating | Uncoated | Cutting Direction (HAND) | Left Hand |
| Flute Count (NOF) | 3 | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | HSS | Measurement Type | Metric |
| Standard | DIN 374 |
Product Features
| Family Description | P212608-M10X1 | Country of Origin | Germany |
Shipping Info
Package Weight
0.075
