2-56 H3 2FL HS PLUG S/P

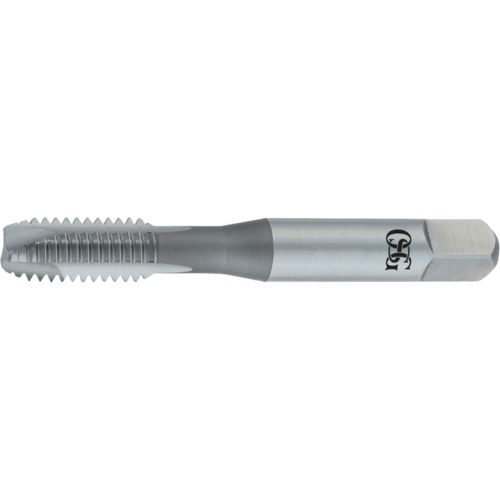

Spiral Point Tap; #2 - 56 ; 1-3/4″ OAL ; 2 FL ; HSS ; Uncoated ; H3 ; Series 105
| Thread Standard | NC | Cutting Edge Material | HSS |
| Thread Size | #2 - 56 | Tool Type | Spiral Point Tap |
| Thread Diameter Size (TDZ) | #2 | Applicable Material | | Steel | Cast Iron | Aluminum / Non-Ferrous Materials | |
| Threads per Inch (TPI) | 56 | Connection Diameter Machine Side (DCONMS) | 0.141″ |
| Thread Tolerance Class (TCTR) | H3 | Thread Cutting Part Length (THL) | 7/16″ |
| Usable Length (LU) | 0.512″ | End Shape | Spiral Point | Chamfer |
| Overall Length (OAL) | 1-3/4″ | Style | Plug |
| Chamfer | 4P-4.5P | Cutting Direction (HAND) | Right Hand |
| Coating | Uncoated | Measurement Type | Wire Gauge |
| Flute Count (NOF) | 2 | Series/List # | 105 |
Product Features
| Remarks | •OSG List No. 105. | Country of Origin | Japan |
Shipping Info
Package Length
2.40000
Package Width
.45000
Package Height
.40000
Package Weight
0.01
