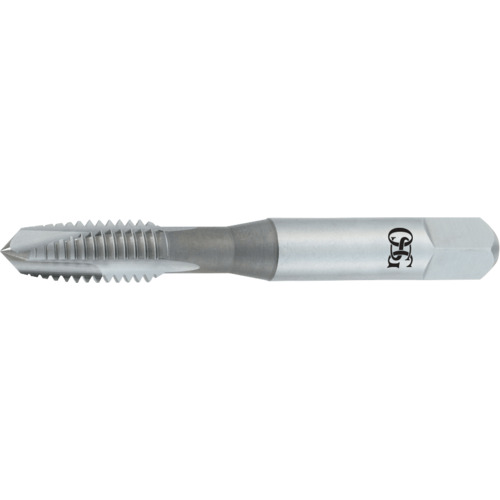

M8x1.25 3FL 6H High Speed Steel Spiral Point Tap - TiN
Spiral Point Tap; M8 × 1.25 mm ; 2-23/32″ OAL ; 3 FL ; HSS ; TiN ; 6H ; Series 288
| Thread Standard | Metric | Cutting Edge Material | HSS |
| Thread Size | M8 × 1.25 | Tool Type | Hand Tap |
| Thread Diameter Size (TDZ) | M8 | Applicable Material | | Steel | Aluminum / Non-Ferrous Materials | |
| Thread Pitch (TP) | 1.25 mm | Connection Diameter Machine Side (DCONMS) | 8.07 mm |
| Thread Tolerance Class (TCTR) | 6H | Thread Cutting Part Length (THL) | 1-1/8″ |
| Usable Length (LU) | 29 mm | End Shape | Spiral Point |
| Overall Length (OAL) | 2-23/32″ | Style | Plug |
| Chamfer | 4P-4.5P | Measurement Type | Metric |
| Coating | TiN | Series/List # | 288 |
| Flute Count (NOF) | 3 |
Product Features
| Country of Origin | Mexico |
Shipping Info
Package Length
3.60000
Package Width
.50000
Package Height
.45000
Package Weight
0.05
