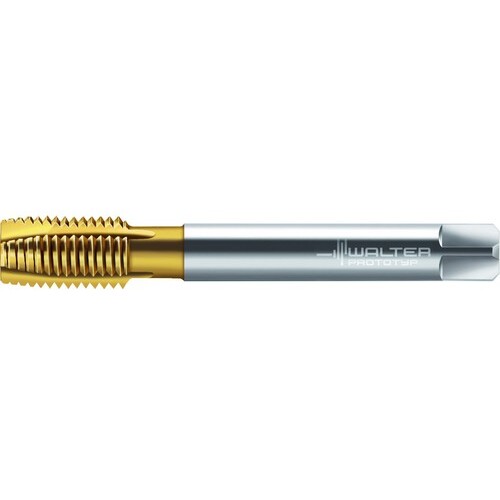

5/16-24 UNF 2B 3 Flute HSS TiN Spiral Point Tap
Spiral Point Tap; 5/16″ - 24 ; 3-43/64″ OAL ; 3 FL ; HSS ; TiN ; 2B
Additional Tariff Surcharge of 8 %
| Thread Standard | NF | Connection Diameter Machine Side (DCONMS) | 0.236″ |
| Thread Size | 5/16″ - 24 | Thread Cutting Part Length (THL) | 45/64″ |
| Thread Diameter Size (TDZ) | 5/16″ | Flute Helix Angle (FHA) | CW|10 Degrees |
| Threads per Inch (TPI) | 24 | Flute Length | 1-19/64″ |
| Thread Tolerance Class (TCTR) | 2B | Flute Type | Straight |
| Overall Length (OAL) | 3-43/64″ | End Shape | Spiral Point |
| Coating | TiN | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | HSS | Measurement Type | Inch |
| Standard | DIN 2184-1 |
Product Features
| Family Description | M2326305-UNF5/16 | Country of Origin | India |
Shipping Info
Package Weight
0.056
