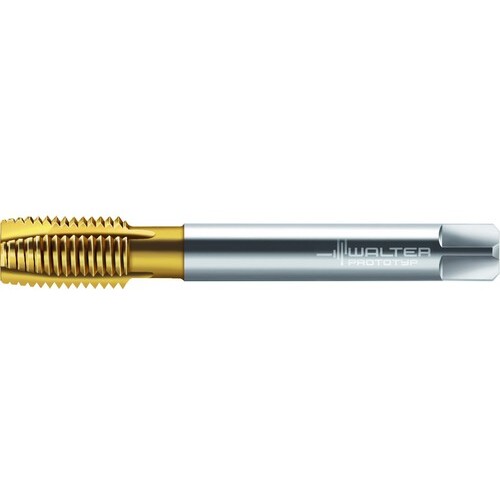

M20x2.5 6H 4 Flute HSS TiN Spiral Point Tap
Spiral Point Tap; M20 × 2.5 mm ; 140 mm OAL ; 4 FL ; HSS ; TiN ; 6H ; Series TC216-WY80AA
Additional Tariff Surcharge of 8 %
| Thread Standard | Metric | Connection Diameter Machine Side (DCONMS) | 16 mm |
| Thread Size | M20 × 2.5 | Flute Helix Angle (FHA) | CW|15 Degrees |
| Thread Diameter Size (TDZ) | M20 | Flute Length | 60 mm |
| Thread Pitch (TP) | 2.5 mm | Flute Type | Straight |
| Thread Tolerance Class (TCTR) | 6H | End Shape | Spiral Point |
| Overall Length (OAL) | 140 mm | Cutting Direction (HAND) | Right Hand |
| Coating | TiN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 | Measurement Type | Metric |
| Cutting Edge Material | HSS | Series/List # | TC216-WY80AA |
| Standard | DIN 376 |
Product Features
| Family Description | TC216-M20-L0 WY80AA | Country of Origin | India |
Shipping Info
Package Weight
0.481
