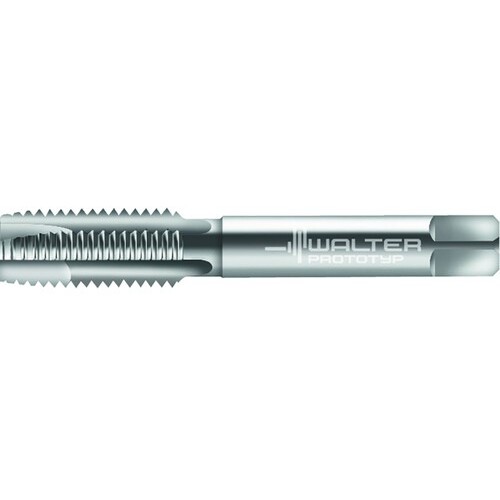

M5x0.8 6H 3 Flute HSS Spiral Point Tap
Spiral Point Tap; M5 × 0.8 mm ; 52.1 mm OAL ; 3 FL ; HSS ; Uncoated ; 6H
Additional Tariff Surcharge of 8 %
| Thread Standard | Metric | Connection Diameter Machine Side (DCONMS) | 6 mm |
| Thread Size | M5 × 0.8 | Thread Cutting Part Length (THL) | 13 mm |
| Thread Diameter Size (TDZ) | M5 | Flute Helix Angle (FHA) | CW|40 Degrees |
| Thread Pitch (TP) | 0.8 mm | Flute Length | 26.5 mm |
| Thread Tolerance Class (TCTR) | 6H | Flute Type | Straight |
| Overall Length (OAL) | 52.1 mm | End Shape | Spiral Point |
| Coating | Uncoated | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | HSS | Measurement Type | Metric |
| Standard | DIN 2184-2 |
Product Features
| Family Description | 20160-M5 | Country of Origin | India |
Shipping Info
Package Weight
0.022
