M12x1.5 6H 4 Flute HSS Bright Left Hand Spiral Poi

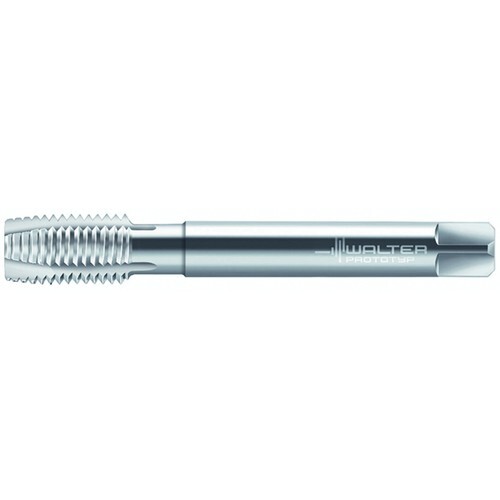

Spiral Point Tap; M12 × 1.5 mm ; 101.92 mm OAL ; 4 FL ; HSS ; Uncoated ; 6H
Additional Tariff Surcharge of 8 %
| Thread Standard | Metric | Connection Diameter Machine Side (DCONMS) | 9 mm |
| Thread Size | M12 × 1.5 | Thread Cutting Part Length (THL) | 21 mm |
| Thread Diameter Size (TDZ) | M12 | Flute Helix Angle (FHA) | CW|15 Degrees |
| Thread Pitch (TP) | 1.5 mm | Flute Length | 37 mm |
| Thread Tolerance Class (TCTR) | 6H | Flute Type | Straight |
| Overall Length (OAL) | 101.92 mm | End Shape | Spiral Point |
| Coating | Uncoated | Cutting Direction (HAND) | Left Hand |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | HSS | Measurement Type | Metric |
| Standard | DIN 374 |
Product Features
| Family Description | P212608-M12X1.5 | Country of Origin | Germany |
Shipping Info
Package Weight
0.121
