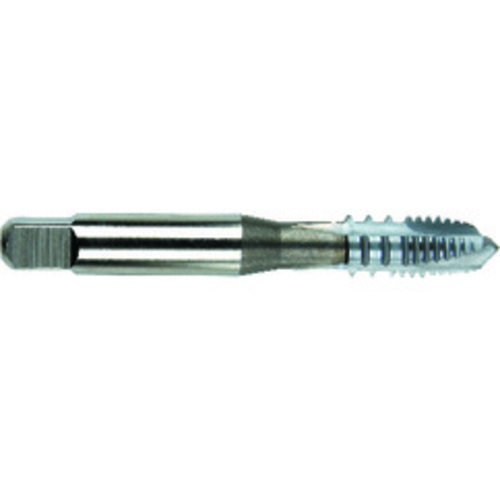

7/16-14 Dia. - H3 - 3 FL - Powder Metal - CrN - Plug - Spiral Point Tap Series/List #2092S
Spiral Point Tap; 7/16″ - 14 ; 3-5/32″ OAL ; 3 FL ; HSS-PM ; CrN ; H3 ; Series 2092S
| Thread Standard | NC | Tool Type | High Performance Tap |
| Thread Size | 7/16″ - 14 | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Thread Diameter Size (TDZ) | 7/16″ | Connection Diameter Machine Side (DCONMS) | 0.323″ |
| Threads per Inch (TPI) | 14 | Thread Cutting Part Length (THL) | 7/8″ |
| Thread Tolerance Class (TCTR) | H3 | Flute Type | Straight |
| Usable Length (LU) | 1-7/16″ | End Shape | Spiral Point |
| Overall Length (OAL) | 3-5/32″ | Style | Plug |
| Chamfer | Plug | Cutting Direction (HAND) | Right Hand |
| Coating | CrN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Cutting Edge Material | HSS-PM | Series/List # | 2092S |
Product Features
| Remarks | • |
Country of Origin | USA |
Shipping Info
Package Length
4.00000
Package Width
.50000
Package Height
.50000
Package Weight
0.11
