2047 5/16-24 S/P H4 3FL

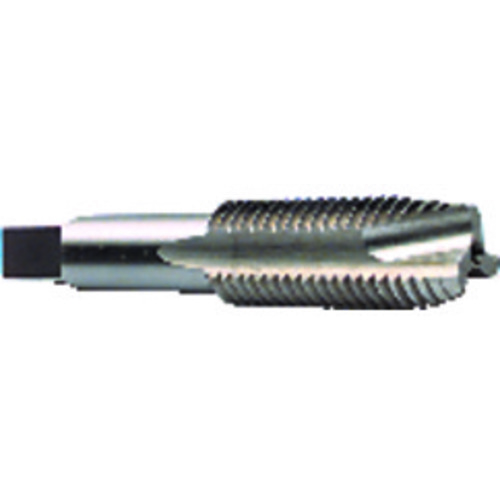

Spiral Point Tap; 5/16″ - 24 ; 2-23/32″ OAL ; 3 FL ; HSS ; Uncoated ; H4 ; Series 2047
| Thread Standard | NF | Tool Type | General Purpose Tap |
| Thread Size | 5/16″ - 24 | Connection Diameter Machine Side (DCONMS) | 0.318″ |
| Thread Diameter Size (TDZ) | 5/16″ | Thread Cutting Part Length (THL) | 1-1/8″ |
| Threads per Inch (TPI) | 24 | Flute Type | Straight |
| Thread Tolerance Class (TCTR) | H4 | End Shape | Spiral Point |
| Usable Length (LU) | 1-1/8″ | Style | Plug |
| Overall Length (OAL) | 2-23/32″ | Cutting Direction (HAND) | Right Hand |
| Chamfer | Plug | Coolant Supply Property (CSP) | External |
| Coating | Uncoated | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Series/List # | 2047 |
| Cutting Edge Material | HSS |
Product Features
| Remarks | Country of Origin | USA |
Shipping Info
Package Length
3.80000
Package Width
.61000
Package Height
.54000
Package Weight
0.07
