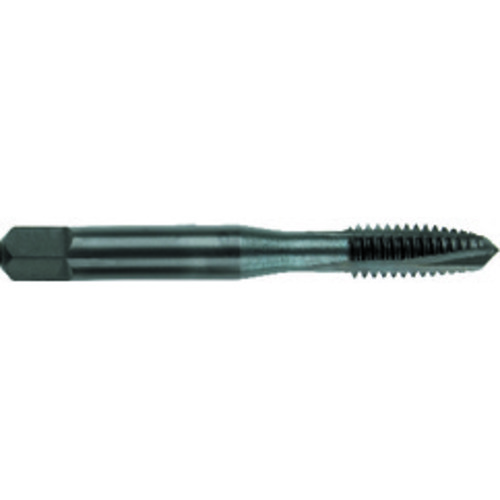

‎M5 x .80 Dia. - D4 - 3 FL - Powder Metal - TiCN - Plug - Spiral Point Tap Series/List #2095MC

‎Spiral Point Tap; M5 × 0.8 mm ; 2-3/8″ OAL ; 3 FL ; HSS-PM ; TiCN ; D4 ; Series 2095MC

Item # 1029316

Brand: Morse Cutting Tools

MFG #: 60902

Legacy Part #: MT3360902

UPC #: 01029316 | 686125609023

Trade Name: HSS-PM

Quantity Available

Thread Standard

Tool Type

High Performance Tap

Thread Size

M5 × 0.8

Applicable Material

| Super-Alloys / Titanium |

Thread Diameter Size (TDZ)

Connection Diameter Machine Side (DCONMS)

0.194″

Thread Pitch (TP)

0.8 mm

Thread Cutting Part Length (THL)

1/2″

Thread Tolerance Class (TCTR)

Flute Type

Straight

Usable Length (LU)

7/8″

End Shape

Spiral Point

Overall Length (OAL)

‎2-3/8″

Style

Plug

Chamfer

Plug

Cutting Direction (HAND)

Right Hand

Coating

TiCN

Coolant Supply Property (CSP)

External

Flute Count (NOF)

Measurement Type

Metric

Cutting Edge Material

HSS-PM

Series/List #

2095MC

Product Features

Remarks

‎• HPT†- High Performance Tap - Exotic Alloys• Recommended for steels, steel alloys, stainless steels, titanium alloys, nickel and nickel base alloys, other exotic alloys and wide variety of materials up to 32Rc hardness.• Spiral†Point Taps are designed fo refficient tapping of through holes and blind holes with adequate depth for chip accumulation at the bottom of the hole. The shearing action of the point provides freer cutting action and ejects the chips ahead of the tap, eliminating chip evacuation problems and chip damage to the threads. Shallower flutes also result in greater tap strength, allowing for higher cutting speeds.• Plug†Style (3-5 thread chamfer) is the most common chamfer used for tapping applications in through holes and blind holes with sufficient bottom clearance.• CNC Reduced Neck Design enhances chip evacuation and cutting fluid flow to the cutting teeth for reduced friction, heat and galling. Also reduces contact between the tap the work piece.• P/M Powder Metallurgy High Speed SteelPremium Steel Engineered For:† Hardness / Wear Resistance / Tool / Heat Resistance / Toughness and Strength / Performance under Difficult Cutting Conditions / Higher Cutting Speeds / Increased Productivity

Country of Origin

USA

Shipping Info

Package Length

3.00000

Package Width

.40000

Package Height

.30000

Package Weight

0.03
