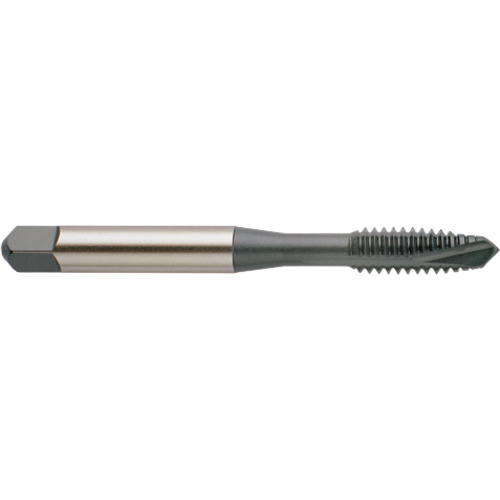

Spiral Point Tap; #3 - 48 ; 1.81″ OAL ; 2 FL ; HSSE-V3 ; Hardslick ; H2 ; Series J8
Spiral Point Tap; #3 - 48 ; 1.81″ OAL ; 2 FL ; HSSE-V3 ; HL ; H2 ; Series J8
| Thread Standard | UNC | Standard | 302A |
| Thread Size | #3 - 48 | Tool Type | Spiral Point Tap |
| Thread Diameter Size (TDZ) | #3 | Connection Diameter Machine Side (DCONMS) | 0.141″ |
| Threads per Inch (TPI) | 48 | Thread Cutting Part Length (THL) | 0.295″ |
| Thread Tolerance Class (TCTR) | H2 | Tapping Prehole Diameter (Pre-hole) | 0.0801″ |
| Usable Length (LU) | 0.492″ | End Shape | Plug |
| Overall Length (OAL) | 1.81″ | Shank Type | Square |
| Chamfer | 4P-5P | Length Group | 3xD |
| Coating | HL | Square Size | 0.11″ |
| Flute Count (NOF) | 2 | Measurement Type | Wire Gauge |
| Cutting Edge Material | HSSE-V3 | Series/List # | J8 |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
3.125
Package Width
0.5
Package Height
0.375
Package Weight
0.011
