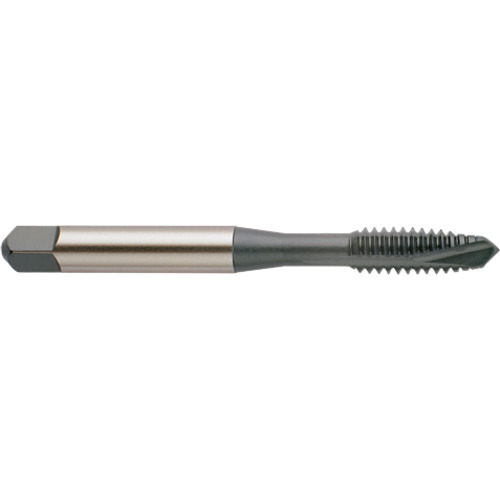

Spiral Point Tap; M6 × 1 mm ; 63.5 mm OAL ; 3 FL ; P-HSS ; TiCN ; D5 ; Series TK808
Spiral Point Tap; M6 × 1 mm ; 63.5 mm OAL ; 3 FL ; HSS ; TiCN ; D5 ; Series TK808
| Thread Standard | M | Tool Type | Spiral Point Tap |
| Thread Size | M6 × 1 mm | Connection Diameter Machine Side (DCONMS) | 6.48 mm |
| Thread Diameter Size (TDZ) | M6 | Thread Cutting Part Length (THL) | 15.01 mm |
| Thread Pitch (TP) | 1 mm | Tapping Prehole Diameter (Pre-hole) | 0.2004″ |
| Thread Tolerance Class (TCTR) | D5 | End Shape | Plug |
| Usable Length (LU) | 25.4 mm | Shank Type | Square |
| Overall Length (OAL) | 63.5 mm | Coolant Supply Property (CSP) | External |
| Chamfer | 4P-5P | Length Group | 3xD |
| Coating | TiCN | Square Size | 7.87 mm |
| Flute Count (NOF) | 3 | Measurement Type | Metric |
| Cutting Edge Material | HSS | Series/List # | TK808 |
| Standard | 302A |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
3.125
Package Width
0.5
Package Height
0.375
Package Weight
0.032
