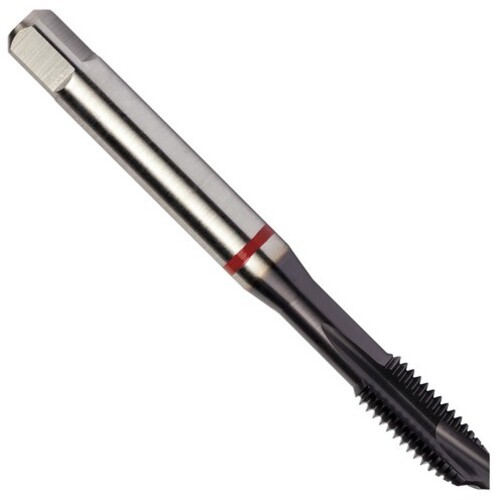

M24x3.0 4 Flute 6H HSS-E PM DIN ANSI Machine Tap - Red Shark for Alloy Steels - Plug Style E-code # E627M24
Spiral Point Tap; M24 × 3 mm ; 160 mm OAL ; 4 FL ; HSSE-PM ; TiAlN ; 6H ; Series E627
Additional Tariff Surcharge of 8 %
| Thread Standard | M | Applicable Material | | Steel | |
| Thread Size | M24 × 3 | Connection Diameter Machine Side (DCONMS) | 0.76″ |
| Thread Diameter Size (TDZ) | M24 | Thread Cutting Part Length (THL) | 38 mm |
| Thread Pitch (TP) | 3 mm | Tapping Prehole Diameter (Pre-hole) | 53/64″ |
| Thread Tolerance Class (TCTR) | 6H | Flute Length | 38 mm |
| Overall Length (OAL) | 160 mm | End Shape | Spiral Point |
| Chamfer | 3.5P-5P | Style | Plug |
| Coating | TiAlN | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | HSSE-PM | Length Group | 2.5xD |
| Standard | DIN ANSI | Measurement Type | Metric |
| Tool Type | Machine Tap | Series/List # | E627 |
| Special Feature | Red Shark |
Product Features
| Family Description | E-code # E627M24 | Country of Origin | India |
Shipping Info
Package Weight
0.745
