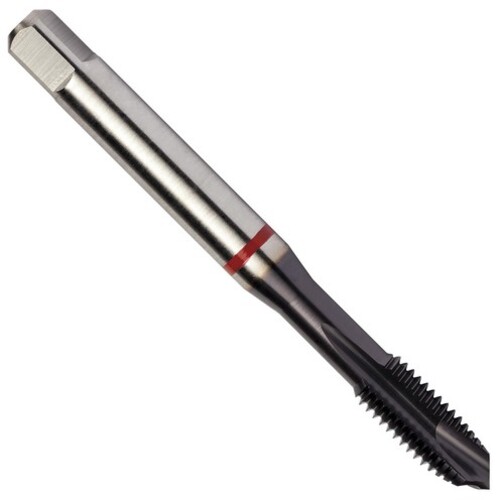

M8x1.25 3 Flute 6H HSS-E PM DIN ANSI Machine Tap - Red Shark for Alloy Steels - Plug Style E-code # E627M8
Spiral Point Tap; M8 × 1.25 mm ; 90 mm OAL ; 3 FL ; HSSE-PM ; TiAlN ; 6H ; Series E627
Additional Tariff Surcharge of 8 %
| Thread Standard | M | Special Feature | Red Shark |
| Thread Size | M8 × 1.25 | Applicable Material | | Steel | |
| Thread Diameter Size (TDZ) | M8 | Connection Diameter Machine Side (DCONMS) | 0.318″ |
| Thread Pitch (TP) | 1.25 mm | Thread Cutting Part Length (THL) | 18 mm |
| Thread Tolerance Class (TCTR) | 6H | Tapping Prehole Diameter (Pre-hole) | H |
| Usable Length (LU) | 35 mm | Flute Length | 18 mm |
| Overall Length (OAL) | 90 mm | End Shape | Spiral Point |
| Chamfer | 3.5P-5P | Style | Plug |
| Coating | TiAlN | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | HSSE-PM | Length Group | 2.5xD |
| Standard | DIN ANSI | Measurement Type | Metric |
| Tool Type | Machine Tap | Series/List # | E627 |
Product Features
| Family Description | E-code # E627M8 | Country of Origin | India |
Shipping Info
Package Weight
0.073
