M12-TAP-REKORD BZ-PM-IKZN

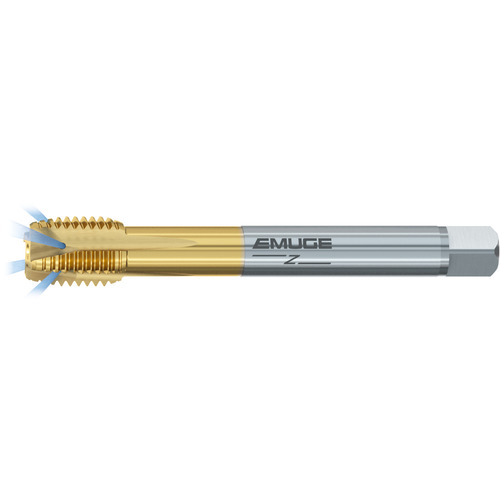

Spiral Point Tap; M12 × 1.75 mm ; 110 mm OAL ; HSSE-PM ; TiN ; 6HX ; Series C1088F01
| Thread Standard | Metric | Standard | DIN |
| Thread Size | M12 × 1.75 | Tool Type | Rekord B-Z |
| Thread Diameter Size (TDZ) | M12 | Applicable Material | | Steel | Stainless Steel | |
| Thread Pitch (TP) | 1.75 mm | Application | Blind Hole |
| Thread Tolerance Class (TCTR) | 6HX | Connection Diameter Machine Side (DCONMS) | 9 mm |
| Overall Length (OAL) | 110 mm | Style | Spiral Point |
| Chamfer | 4P-5P | Cutting Direction (HAND) | Right Hand |
| Coating | TiN | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Edge Material | HSSE-PM | Series/List # | C1088F01 |
Product Features
| Remarks | • Rekord B-Z design is typically for through hole applications in long-chipping materials such as stainless steel, steel and aluminum alloys. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
0.112
