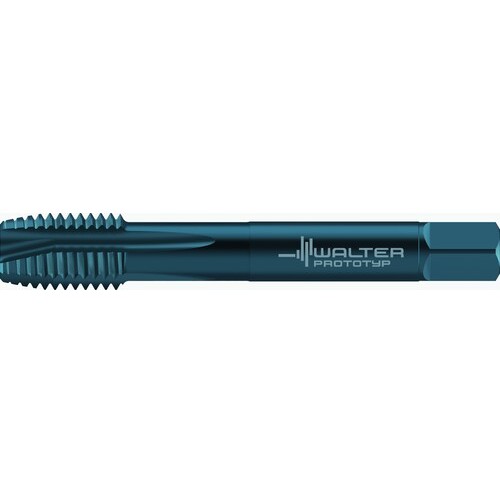

M20 × 2.5 Metric 6HX 4 Flute HSS-E Steam Oxide Tap
Spiral Point Tap; M20 × 2.5 mm ; 140 mm OAL ; 4 FL ; HSSE ; Black Oxide ; 6HX ; Series TC217

| Thread Standard | Metric | Applicable Material | | Steel | Stainless Steel | Cast Iron | Aluminum / Non-Ferrous Materials | |
| Thread Size | M20 × 2.5 | Connection Diameter Machine Side (DCONMS) | 0.652″ |
| Thread Diameter Size (TDZ) | M20 | Flute Length | 60 mm |
| Thread Pitch (TP) | 2.5 mm | Cutting Direction (HAND) | Right Hand |
| Thread Tolerance Class (TCTR) | 6HX | Coolant Supply Property (CSP) | External |
| Usable Length (LU) | 93 mm | Measurement Type | Metric |
| Overall Length (OAL) | 140 mm | Series/List # | TC217 |
| Coating | Black Oxide | Grade | WY80FC |
| Flute Count (NOF) | 4 | Body Material | HSS-E |
| Cutting Edge Material | HSSE |
Product Features
| Country of Origin | India |
Shipping Info
Package Weight
0.031
