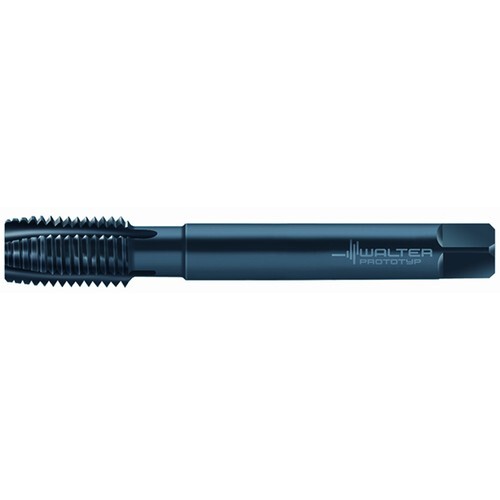

MF10 × 1.25 Metric 6H 3 Flute HSS-E Steam Oxide Tap
Spiral Point Tap; M10 × 1.25 mm ; 104.39 mm OAL ; 3 FL ; HSSE ; Black Oxide ; 6H ; Series TC216
Additional Tariff Surcharge of 8 %
| Thread Standard | Metric | Applicable Material | | Steel | Stainless Steel | Cast Iron | Aluminum / Non-Ferrous Materials | |
| Thread Size | M10 × 1.25 | Connection Diameter Machine Side (DCONMS) | 7 mm |
| Thread Diameter Size (TDZ) | M10 | Flute Length | 37 mm |
| Thread Pitch (TP) | 1.25 mm | Cutting Direction (HAND) | Right Hand |
| Thread Tolerance Class (TCTR) | 6H | Coolant Supply Property (CSP) | External |
| Usable Length (LU) | 77 mm | Measurement Type | Metric |
| Overall Length (OAL) | 104.39 mm | Series/List # | TC216 |
| Coating | Black Oxide | Grade | WY80FC |
| Flute Count (NOF) | 3 | Body Material | HSS-E |
| Cutting Edge Material | HSSE |
Product Features
| Country of Origin | India |
