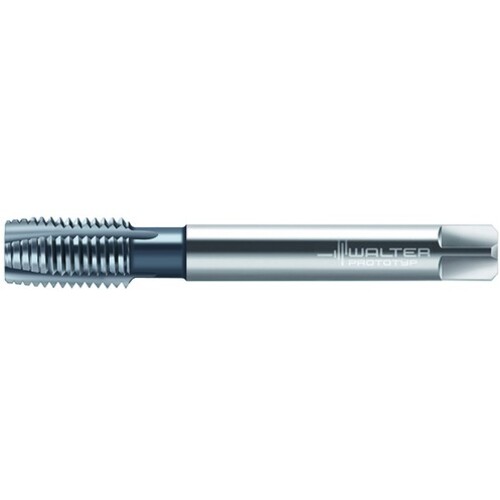

1/2″ - 20 UNF 2B 4 Flute HSS-E-PM TiCN Tap
Additional Tariff Surcharge of 8 %
| Thread Standard | UNF | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Thread Size | 1/2″ - 20 | Connection Diameter Machine Side (DCONMS) | 9 mm |
| Thread Diameter Size (TDZ) | 1/2″ | Flute Length | 36 mm |
| Threads per Inch (TPI) | 20 | Cutting Direction (HAND) | Right Hand |
| Thread Tolerance Class (TCTR) | 2B | Coolant Supply Property (CSP) | External |
| Usable Length (LU) | 73 mm | Measurement Type | Inch |
| Overall Length (OAL) | 100 mm | Series/List # | 2326706 |
| Coating | TiCN | Grade | TICN |
| Flute Count (NOF) | 4 | Body Material | HSS-E PM |
| Cutting Edge Material | HSSE-PM |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.011
