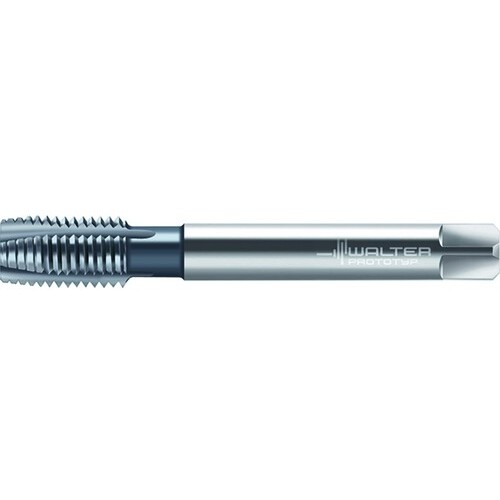

MF10 × 1.25 Metric 6HX 3 Flute HSS-E-PM TiCN Tap
Spiral Point Tap; M10 × 1.25 mm ; 101.67 mm OAL ; 3 FL ; HSSE-PM ; TiCN ; 6HX ; Series 21266106
Additional Tariff Surcharge of 8 %
| Thread Standard | Metric | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Thread Size | M10 × 1.25 | Connection Diameter Machine Side (DCONMS) | 7 mm |
| Thread Diameter Size (TDZ) | M10 | Flute Length | 29 mm |
| Thread Pitch (TP) | 1.25 mm | Cutting Direction (HAND) | Right Hand |
| Thread Tolerance Class (TCTR) | 6HX | Coolant Supply Property (CSP) | External |
| Usable Length (LU) | 77 mm | Measurement Type | Metric |
| Overall Length (OAL) | 101.67 mm | Series/List # | 21266106 |
| Coating | TiCN | Grade | TICN |
| Flute Count (NOF) | 3 | Body Material | HSS-E PM |
| Cutting Edge Material | HSSE-PM |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.011
