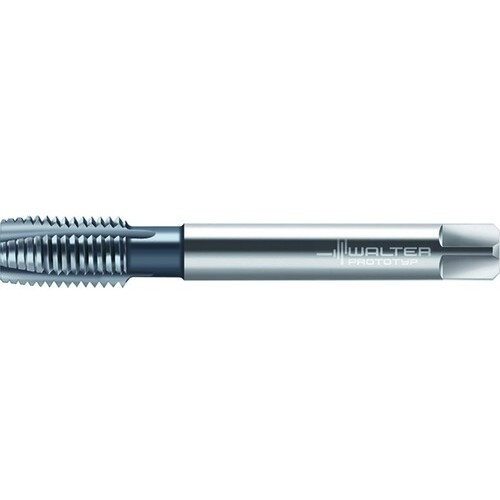

5/8″ - 18 UNF 3B 4 Flute HSS-E-PM TiCN Tap
| Thread Standard | UNF | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Thread Size | 5/8″ - 18 | Connection Diameter Machine Side (DCONMS) | 12 mm |
| Thread Diameter Size (TDZ) | 5/8″ | Flute Length | 37 mm |
| Threads per Inch (TPI) | 18 | Cutting Direction (HAND) | Right Hand |
| Thread Tolerance Class (TCTR) | 3B | Coolant Supply Property (CSP) | External |
| Usable Length (LU) | 58 mm | Measurement Type | Inch |
| Overall Length (OAL) | 100 mm | Series/List # | 2325706 |
| Coating | TiCN | Grade | TICN |
| Flute Count (NOF) | 4 | Body Material | HSS-E PM |
| Cutting Edge Material | HSSE-PM |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.011
