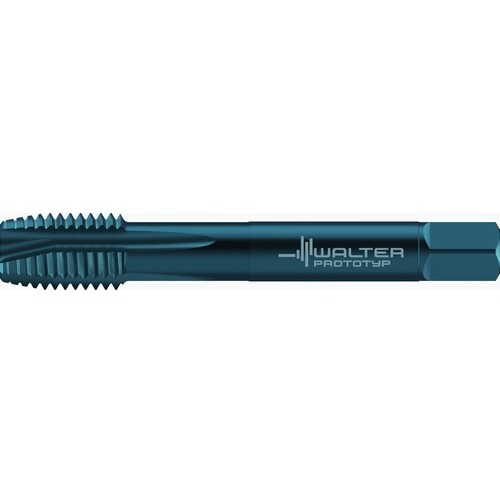

7/16″ - 14 UNC 2B/3B 3 Flute HSS-E Steam Oxide Tap
Spiral Point Tap; 7/16″ - 14 ; 100 mm OAL ; 3 FL ; HSSE ; Black Oxide ; 2B | 3B ; Series TC217
Additional Tariff Surcharge of 8 %
| Thread Standard | UNC | Applicable Material | | Steel | Stainless Steel | Cast Iron | Aluminum / Non-Ferrous Materials | |
| Thread Size | 7/16″ - 14 | Connection Diameter Machine Side (DCONMS) | 0.323″ |
| Thread Diameter Size (TDZ) | 7/16″ | Flute Length | 37 mm |
| Threads per Inch (TPI) | 14 | Cutting Direction (HAND) | Right Hand |
| Thread Tolerance Class (TCTR) | 2B | 3B | Coolant Supply Property (CSP) | External |
| Usable Length (LU) | 73 mm | Measurement Type | Inch |
| Overall Length (OAL) | 100 mm | Series/List # | TC217 |
| Coating | Black Oxide | Grade | WY80FC |
| Flute Count (NOF) | 3 | Body Material | HSS-E |
| Cutting Edge Material | HSSE |
Product Features
| Country of Origin | India |
Shipping Info
Package Weight
0.031
