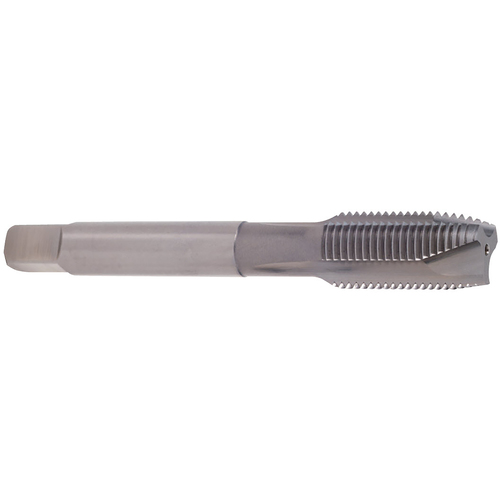

M12X1.75 D4 3FL SP PT STI
Spiral Point Tap; M12 × 1.75 mm ; 3.59″ OAL ; 3 FL ; HSS ; Bright ; D4
| Tool Type | STI Tap | Coolant Supply Property (CSP) | External |
| Thread Diameter Size (TDZ) | M12 | Shank Type | Square |
| Thread Tolerance Class (TCTR) | D4 | Thread Pitch (TP) | 1.75 mm |
| Thread Standard | M | Flute Type | Spiral Point |
| Thread Cutting Part Length (THL) | 24.99 mm | Usable Length (LU) | 42.16 mm |
| Overall Length (OAL) | 91.19 mm | Measurement Type | Metric |
| Cutting Edge Material | HSS | Connection Diameter Machine Side (DCONMS) | 10.9 mm |
| End Shape | Bottoming | Standard | 322A |
| Flute Count (NOF) | 3 | Length Group | 3xD |
| Chamfer | 1.5P-2P | Series/List # | T7415 |
| Coating | Uncoated | Thread Size | M12 × 1.75 mm |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
3.75
Package Width
0.75
Package Height
0.75
Package Weight
0.3
