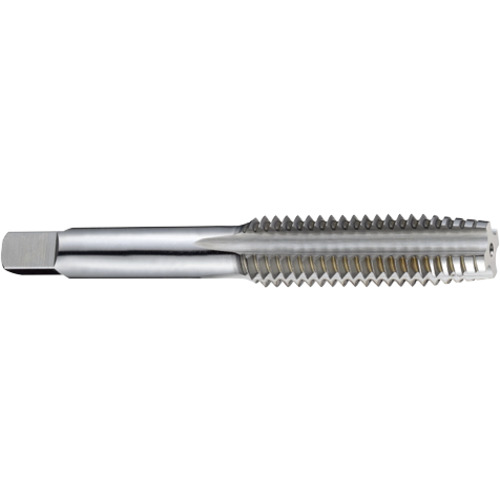

5/16-18 H3 3FL HSS PLUG
Straight Flute Tap; 5/16″ - 18 ; 2.72″ OAL ; 3 FL ; HSS ; Uncoated ; H3 ; Series T7B16
| Thread Diameter Size (TDZ) | 5/16″ | Coating | Uncoated |
| Threads per Inch (TPI) | 18 | Tapping Prehole Diameter (Pre-hole) | 0.262″ |
| Thread Standard | UNC | Flute Length | 1-1/8″ |
| Overall Length (OAL) | 2.72″ | Flute Type | Straight Flute |
| Thread Cutting Part Length (THL) | 1.13″ | End Shape | Plug |
| Usable Length (LU) | 1.13″ | Shank Type | Square |
| Connection Diameter Machine Side (DCONMS) | 0.318″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | HSS | Length Group | 2xD |
| Thread Tolerance Class (TCTR) | H3 | Square Size | 0.238″ |
| Standard | 302 | Measurement Type | Inch |
| Tool Type | Hand Tap | Series/List # | T7B16 |
| Chamfer | 4P-5P | Thread Size | 5/16″ - 18 |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
3.75
Package Width
0.5
Package Height
0.5
Package Weight
0.063
