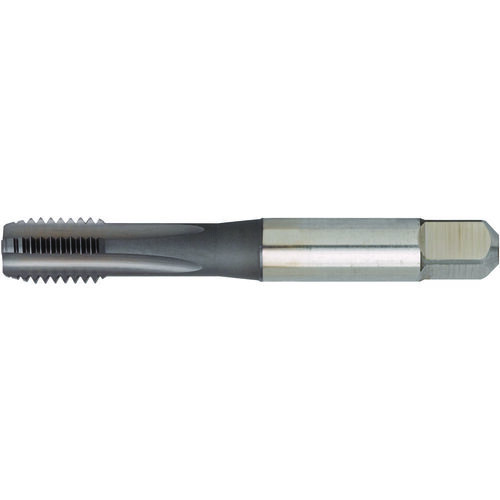

GT405029 3/4-10 3BX STFL SBOTT
Straight Flute Tap; 3/4″ - 10 ; 4-1/4″ OAL ; 4 FL ; HSSCo-PM ; 3BX
Additional Tariff Surcharge of 8.5 %
| Thread Diameter Size (TDZ) | 3/4″ | Chamfer | 2P-3P |
| Threads per Inch (TPI) | 10 | Flute Type | Straight |
| Thread Standard | NC | Style | Semi-Bottoming |
| Overall Length (OAL) | 4-1/4″ | Shank Type | Round w/ Drive Square |
| Thread Cutting Part Length (THL) | 1″ | Cutting Direction (HAND) | Neutral |
| Connection Diameter Machine Side (DCONMS) | 0.59″ | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 | Square Size | 0.446″ |
| Cutting Edge Material | HSSCo-PM | Measurement Type | Inch |
| Thread Tolerance Class (TCTR) | 3BX | Thread Size | 3/4″ - 10 |
| Standard | ANSI |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
.2763
