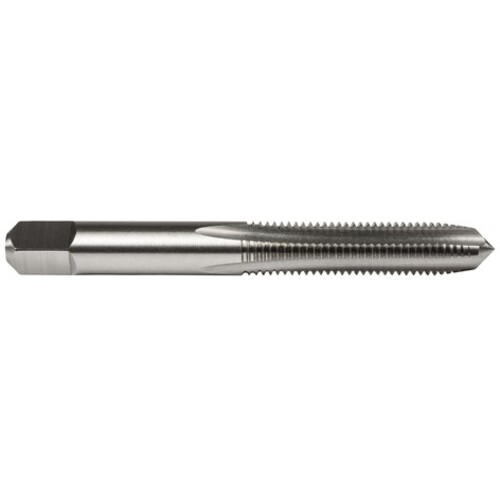

5/16″- 18 4 Flute Plug Union Butterfield HSS Bright UNC Hand Tap ANSI E-code # 15005/16X18H3NO2
Straight Flute Tap; 5/16″ - 18 ; 2-23/32″ OAL ; 4 FL ; HSS ; Uncoated ; 2B|3B|H3
| Thread Diameter Size (TDZ) | 5/16″ | Tool Type | Hand Tap |
| Threads per Inch (TPI) | 18 | Coating | Uncoated |
| Thread Standard | NC | Flute Type | Straight |
| Overall Length (OAL) | 2-23/32″ | Style | Plug |
| Thread Cutting Part Length (THL) | 1-1/8″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 0.318″ | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 | Length Group | 1.5D |
| Applicable Material | | Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Square Size | 0.238″ |
| Cutting Edge Material | HSS | Measurement Type | Inch |
| Thread Tolerance Class (TCTR) | 2B|3B|H3 | Thread Size | 5/16″ - 18 |
| Standard | ANSI |
Product Features
| Family Description | E-code # 15005/16X18H3NO2 | Country of Origin | USA |
Shipping Info
Package Weight
0.055
