2046G 7/16-14 PLUG H3

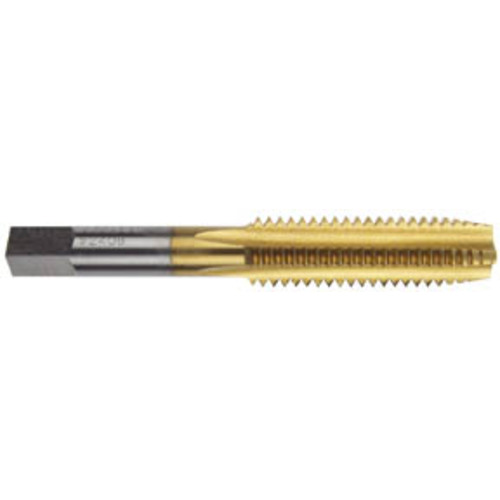

Straight Flute Tap; 7/16″ - 14 ; 3-5/32″ OAL ; 4 FL ; HSS ; TiN ; H3 ; Series 2046G
| Thread Diameter Size (TDZ) | 7/16″ | Tool Type | General Purpose Tap |
| Threads per Inch (TPI) | 14 | Chamfer | Plug |
| Thread Standard | NC | Coating | TiN |
| Overall Length (OAL) | 3-5/32″ | Drive Size (DRVS) | 0.242″ |
| Thread Cutting Part Length (THL) | 1-7/16″ | Flute Type | Straight |
| Usable Length (LU) | 1-7/16″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 0.323″ | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Cutting Edge Material | HSS | Series/List # | 2046G |
| Thread Tolerance Class (TCTR) | H3 | Thread Size | 7/16″ - 14 |
Product Features
| Remarks | • |
Country of Origin | USA |
Shipping Info
Package Length
4.00000
Package Width
.50000
Package Height
.50000
Package Weight
0.1
