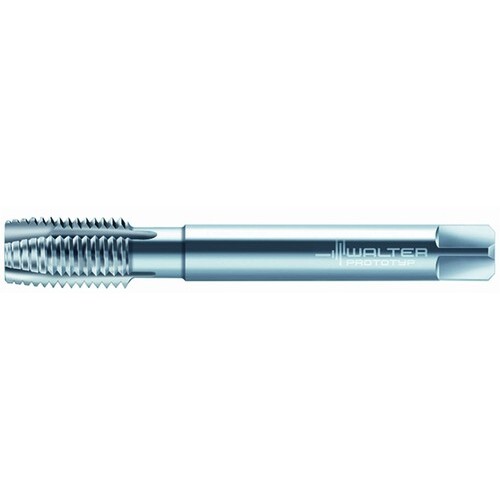

1-1/8-12 UNF 2B 4 Flute HSS Bright Straight Flute
Straight Flute Tap; 1-1/8″ - 12 ; 5-29/32″ OAL ; 4 FL ; HSS ; Uncoated ; 2B
Additional Tariff Surcharge of 8 %
| Thread Diameter Size (TDZ) | 1-1/8″ | Thread Tolerance Class (TCTR) | 2B |
| Threads per Inch (TPI) | 12 | Standard | DIN 2184-1 |
| Thread Standard | NF | Coating | Uncoated |
| Overall Length (OAL) | 5-29/32″ | Flute Length | 2-31/64″ |
| Thread Cutting Part Length (THL) | 1-1/32″ | Flute Type | Straight |
| Connection Diameter Machine Side (DCONMS) | 0.866″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | CW|25 Degrees | Measurement Type | Inch |
| Cutting Edge Material | HSS | Thread Size | 1-1/8″ - 12 |
Product Features
| Family Description | P23360-UNF1.1/8 | Country of Origin | Germany |
Shipping Info
Package Weight
0.992
