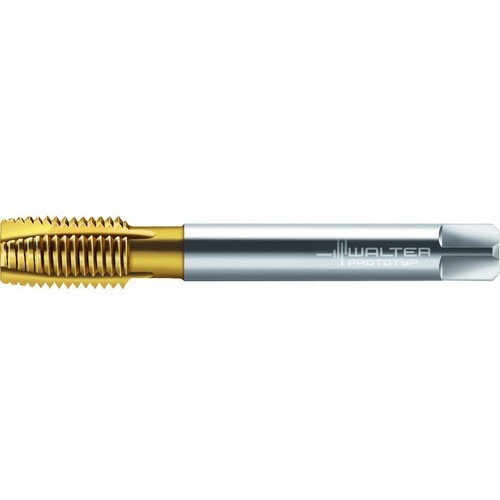

7/16-20 UNF 2B 3 Flute HSS TiN Straight Flute Tap
Straight Flute Tap; 7/16″ - 20 ; 4″ OAL ; 3 FL ; HSS ; TiN ; 2B
Additional Tariff Surcharge of 8 %
| Thread Diameter Size (TDZ) | 7/16″ | Thread Tolerance Class (TCTR) | 2B |
| Threads per Inch (TPI) | 20 | Standard | DIN 2184-1 |
| Thread Standard | NF | Coating | TiN |
| Overall Length (OAL) | 4″ | Flute Length | 1-29/64″ |
| Thread Cutting Part Length (THL) | 25/32″ | Flute Type | Straight |
| Connection Diameter Machine Side (DCONMS) | 5/16″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | CW|30 Degrees | Measurement Type | Inch |
| Cutting Edge Material | HSS | Thread Size | 7/16″ - 20 |
Product Features
| Family Description | P2336005-UNF7/16 | Country of Origin | Germany |
Shipping Info
Package Weight
0.149
