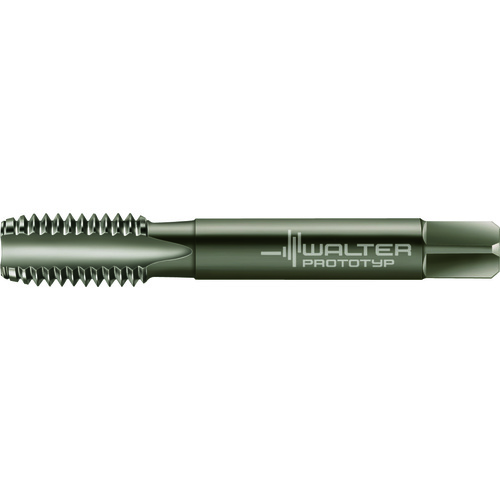

7/16-14 UNC 2B 4 Flute HSS NID Straight Flute Tap
Straight Flute Tap; 7/16″ - 14 ; 3-5/32″ OAL ; 4 FL ; HSS ; Nitride ; 2B
| Thread Diameter Size (TDZ) | 7/16″ | Thread Tolerance Class (TCTR) | 2B |
| Threads per Inch (TPI) | 14 | Standard | ANSI B94.9 |
| Thread Standard | NC | Coating | Nitride |
| Overall Length (OAL) | 3-5/32″ | Flute Length | 1-17/64″ |
| Thread Cutting Part Length (THL) | 55/64″ | Flute Type | Straight |
| Connection Diameter Machine Side (DCONMS) | 21/64″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | CW|45 Degrees | Measurement Type | Inch |
| Cutting Edge Material | HSS | Thread Size | 7/16″ - 14 |
Product Features
| Family Description | A22364-UNC7/16 | Country of Origin | Germany |
Shipping Info
Package Weight
0.084
