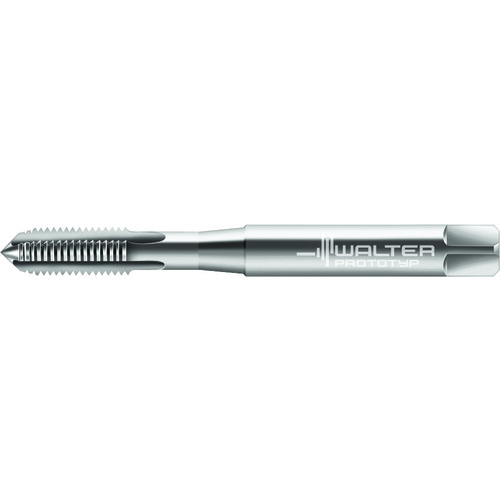

M2.2x0.45 6H 3 Flute HSS Straight Flute Tap
20311-M2.2
Additional Tariff Surcharge of 8 %
| Thread Diameter Size (TDZ) | M2.2 | Thread Tolerance Class (TCTR) | 6H |
| Thread Pitch (TP) | 0.45 mm | Standard | DIN 371 |
| Thread Standard | Metric | Coating | Uncoated |
| Overall Length (OAL) | 45.87 mm | Flute Length | 11.5 mm |
| Thread Cutting Part Length (THL) | 7 mm | Flute Type | Straight |
| Connection Diameter Machine Side (DCONMS) | 2.8 mm | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | CW|25 Degrees | Measurement Type | Metric |
| Cutting Edge Material | HSS | Thread Size | M2.2 × 0.45 |
Product Features
| Family Description | 20311-M2.2 | Country of Origin | GERMANY |
Shipping Info
Package Weight
.004
