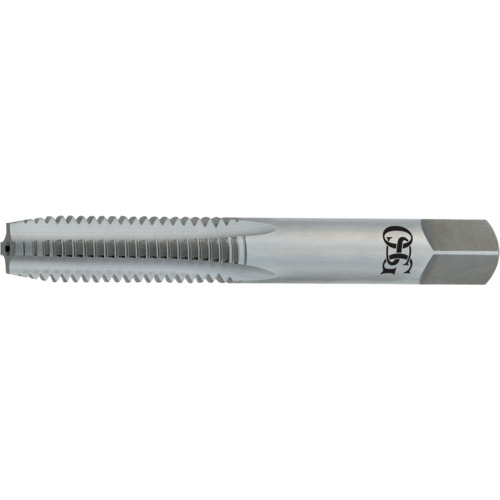

3/4-10 Dia-H3-4 FL-Bright HSS Left Hand-Plug Hand Tap
Straight Flute Tap; 3/4″ - 10 ; 4-1/4″ OAL ; 4 FL ; HSS ; Uncoated ; H3 ; Series 101L
| Thread Diameter Size (TDZ) | 3/4″ | Tool Type | General Purpose Tap |
| Threads per Inch (TPI) | 10 | Chamfer | 4P-4.5P |
| Thread Standard | NC | Coating | Uncoated |
| Overall Length (OAL) | 4-1/4″ | Flute Type | Straight |
| Thread Cutting Part Length (THL) | 2″ | End Shape | Chamfer |
| Usable Length (LU) | 2.22″ | Style | Plug |
| Connection Diameter Machine Side (DCONMS) | 0.59″ | Cutting Direction (HAND) | Left Hand |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Applicable Material | | Steel | Cast Iron | Aluminum / Non-Ferrous Materials | | Series/List # | 101L |
| Cutting Edge Material | HSS | Thread Size | 3/4″ - 10 |
| Thread Tolerance Class (TCTR) | H3 |
Product Features
| Remarks | •Left Hand Plug •High Speed Steel Ground Thread Bright Finish | Country of Origin | Mexico |
Shipping Info
Package Length
4.35000
Package Width
1.00000
Package Height
.90000
Package Weight
0.286
