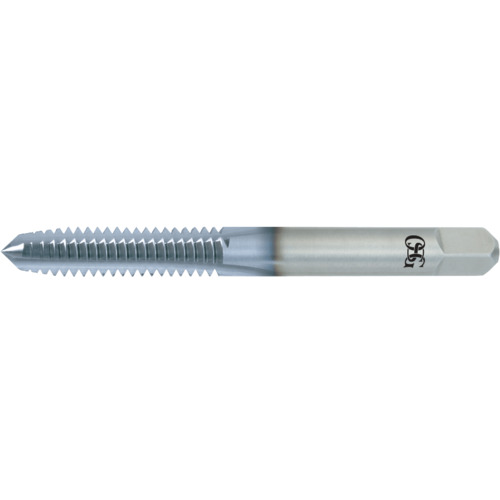

M12 1.50 Dia-D6-4 FL-Bright HSS-Plug Hand Tap
Straight Flute Tap; M12 × 1.5 mm ; 3-3/8″ OAL ; 4 FL ; HSS ; Uncoated ; D6 ; Series 141
| Thread Diameter Size (TDZ) | M12 | Tool Type | General Purpose Tap |
| Thread Pitch (TP) | 1.5 mm | Chamfer | 4P-4.5P |
| Thread Standard | Metric | Coating | Uncoated |
| Overall Length (OAL) | 3-3/8″ | Flute Type | Straight |
| Thread Cutting Part Length (THL) | 1-21/32″ | End Shape | Chamfer |
| Usable Length (LU) | 46 mm | Style | Plug |
| Connection Diameter Machine Side (DCONMS) | 9.32 mm | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 | Measurement Type | Metric |
| Applicable Material | | Steel | Cast Iron | Aluminum / Non-Ferrous Materials | | Series/List # | 141 |
| Cutting Edge Material | HSS | Thread Size | M12 × 1.5 |
| Thread Tolerance Class (TCTR) | D6 |
Product Features
| Remarks | •High Speed Steel •Ground thread | Country of Origin | Mexico |
Shipping Info
Package Length
4.95000
Package Width
.70000
Package Height
.65000
Package Weight
0.1
