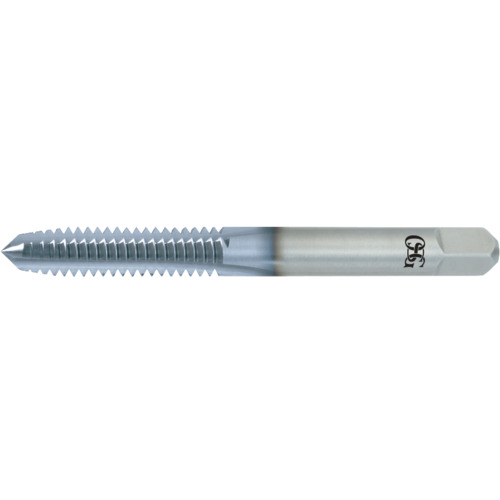

M4.5 0.75 Dia-D4-4 FL-Bright HSS-Plug Hand Tap
Straight Flute Tap; M4.5 × 0.75 mm ; 2-3/8″ OAL ; 4 FL ; HSS ; Uncoated ; D4 ; Series 141
| Thread Diameter Size (TDZ) | M4.5 | Tool Type | General Purpose Tap |
| Thread Pitch (TP) | 0.75 mm | Chamfer | 4P-4.5P |
| Thread Standard | Metric | Coating | Uncoated |
| Overall Length (OAL) | 2-3/8″ | Flute Type | Straight |
| Thread Cutting Part Length (THL) | 7/8″ | End Shape | Chamfer |
| Usable Length (LU) | 27 mm | Style | Plug |
| Connection Diameter Machine Side (DCONMS) | 4.92 mm | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 | Measurement Type | Metric |
| Applicable Material | | Steel | Cast Iron | Aluminum / Non-Ferrous Materials | | Series/List # | 141 |
| Cutting Edge Material | HSS | Thread Size | M4.5 × 0.75 |
| Thread Tolerance Class (TCTR) | D4 |
Product Features
| Remarks | •High Speed Steel •Ground thread | Country of Origin | Brazil |
Shipping Info
Package Length
2.90000
Package Width
.40000
Package Height
.35000
Package Weight
0.02
